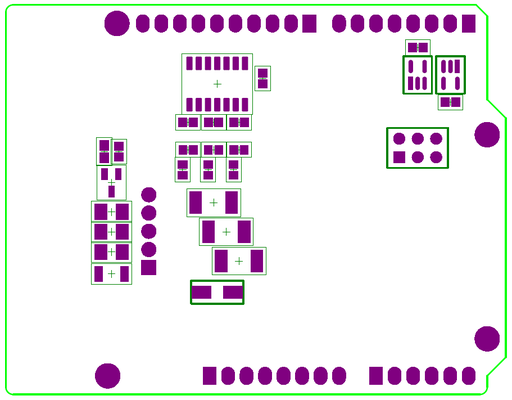

Design of a custom Shield or HAT extension board for Arduino or Raspberry Pi, featuring one or two functions maximum* (up to 15~20 components*).

Deliverables on completion of the project (digital files** sent to you by e-mail):
• Manufacturing files including: Gerber, NC Drill, Layer drawings, Pick-and-Place parts list, Assembly drawings
• Bill of Materials (BOM)

Get a pack of 3 custom boards fabricated for you and delivered to your place.
Please note: because we don't know your final application, we're not in a position to test your boards before shipping.

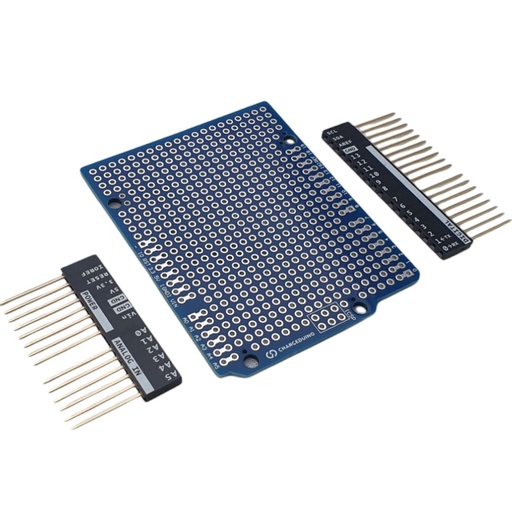

Bring life to your own custom electronic circuit with this Proto Shield add-on board!

It makes it easy to solder through-tole components on it while giving you as much prototyping space as available on a UNO format, fully populated with 2.54mm pitch holes (0.100").
All holes are electrically independent, i.e. not connected together, apart the ones adjacent to the side connectors (headers).

By purchasing this option, you are allowed to ask for a non-standard board shape.

By purchasing this option, we provide the source design files (Altium Designer project).

By purchasing this option, you won't have our brand logo on your board.
